F28 Automatic Coffee Machine | 28g Brewing Chamber, Dual 1kg Bean Bins, 3500W
|
F28 Automatic Coffee Machine | 28g Brewing Chamber, Dual 1kg Bean Bins, 3500W
Description

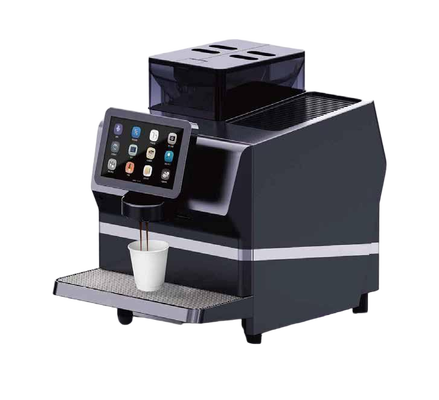

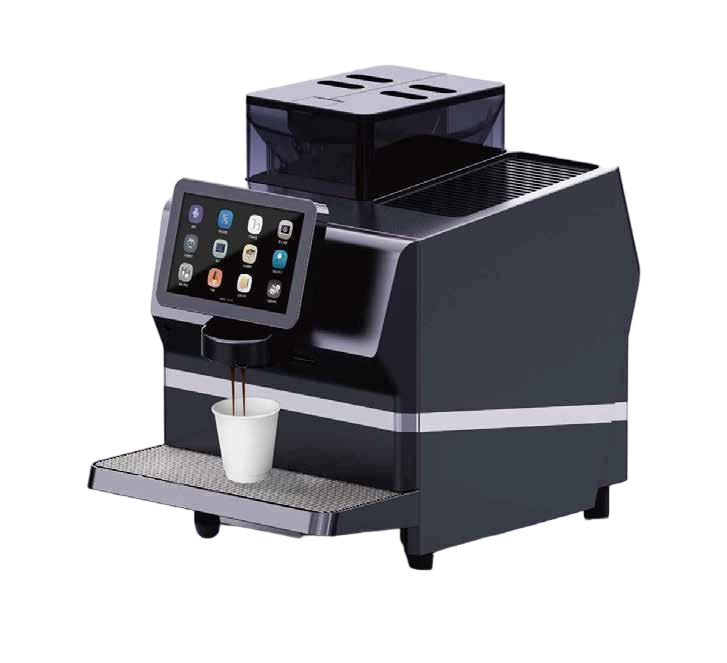

The DK F28 Automatic Coffee Machine is a high-capacity commercial coffee solution built for busy hospitality and office environments. It features a 28g brewing chamber, dual 1kg bean bins, 10.1-inch touch screen and 3500W total power, delivering fast and consistent coffee production.
The F28 uses a brushless grinder motor, Italy-imported Fluid-o-tech water pump, Ditting titanium-plated 64mm knife disc and German-imported AVS solenoid valve. A 42 stepper motor with gearbox provides precise cutter adjustment. The machine is designed to produce espresso, Americano, hot latte, cold latte, cappuccino and milk froth with stable quality and high hourly output.
Specifications
| Tech Data | Model F28 |
|---|---|
| Product Name | Automatic Coffee Machine |
| Brand Name | HAMBACH |
| Model | F28 |
| Dimensional Parameters | D668 × W440 × H588 mm |
| Machine Net Weight | 65kg |
| Brewing Chamber | 28g |
| Deck | 64mm |
| User Interface | 10.1 inch touch screen |
| Bean Bin | 1kg × 2 |
| Powder Slag Box | 400g |
| Beverage Outlet Height | 145–195 mm adjustable |
| Interface | USB, WiFi |
| Preheating Boiler | 0.9L |
| Rated Voltage | 220V |
| Total Power | 3500W |
Coffee Making Time
| Beverage | Production Time | Output |
|---|---|---|
| Espresso | 48 seconds | Approx. 70 cups/hour (based on 30g) |
| Americano | 54 seconds | Approx. 60 cups/hour (based on 320ml cup) |
| Hot Milk Froth | 30–35 seconds | Approx. 130 cups/hour (based on 320ml cup) |
| Hot Latte | 55 seconds | Approx. 60 cups/hour (based on 320ml cup) |
| Cold Latte | 55 seconds | Approx. 60 cups/hour (based on 320ml cup) |
| Cappuccino | 47 seconds | Approx. 70 cups/hour (based on 320ml cup) |
| Cold Milk Froth | 30–35 seconds | Approx. 130 cups/hour (based on 320ml cup) |
Core Accessories
-
Grinder Motor: Brushless motor, speed adjustable, long life, ultra-quiet, high torque
-
Water Pump: Italy imported Fluid-o-tech water pump
-
Knife Plate Brand: Ditting, titanium-plated knife disc, diameter 64mm, uniform grinding particles, rich extraction flavor
-
Solenoid Valve: AVS solenoid valve imported from Germany
-
Cutter Adjustment Motor: Stepper motor, 42 stepper motor with gearbox, accurate cutter control
Craftsmanship Details
-
Grinding: Electronic control helps ensure stable coffee quality around the clock.
-
Temperature Control: Dual boiler system helps ensure stable coffee boiler temperature, improving efficiency and flavor uniformity.
-
Filling Pressure: 28g brewing chamber controlled by electronic filling pressure device, supporting consistent single-cycle beverages.
-
Brewing: Analog semi-automatic extraction brewing system maximizes coffee powder extraction efficiency.
-
Milk Frothing: Mechanical frothing improves aroma and taste of milk froth while balancing hot and cold milk froth functions.
-
Formulation: All products are pre-programmed to be dispensed in a consistent and efficient manner, putting superior productivity and quality front and center.
Applications
High-volume cafes, hotels, restaurants, office buildings, convenience stores, hospitality suites, corporate pantries and commercial coffee service points.
Shared FAQ for All Models
Q1. Can I have a sample order for the coffee machine?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 15-20 days for sample preparation, 1-2 mouths for mass production.
Q3. Do you have any MOQ limit for the coffee machine order?
A: Low MOQ. 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. IAirline and sea shipping are also optional.
Q5. How to proceed an order for the coffee machine?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
Q6. Is it OK to print my logo on the coffee machine product?
A: Yes. Please inform us formally before our production.
Q7. Do you offer guarantee for the products?
A: We provide product warranty. Please contact our sales team for the exact warranty period and terms for your model and order.
Q8. How to deal with the faulty?
A: Firstly, our products are produced under strict quality control, and the defective rate will be less than 0.2%.
Secondly, during the agreed warranty period, for small quantities we will send new units with new order. For defective batch products, we will repair them and resend them to you, or we can discuss the solution including recall according to the real situation.
