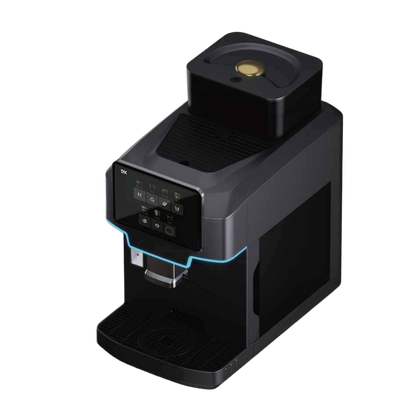

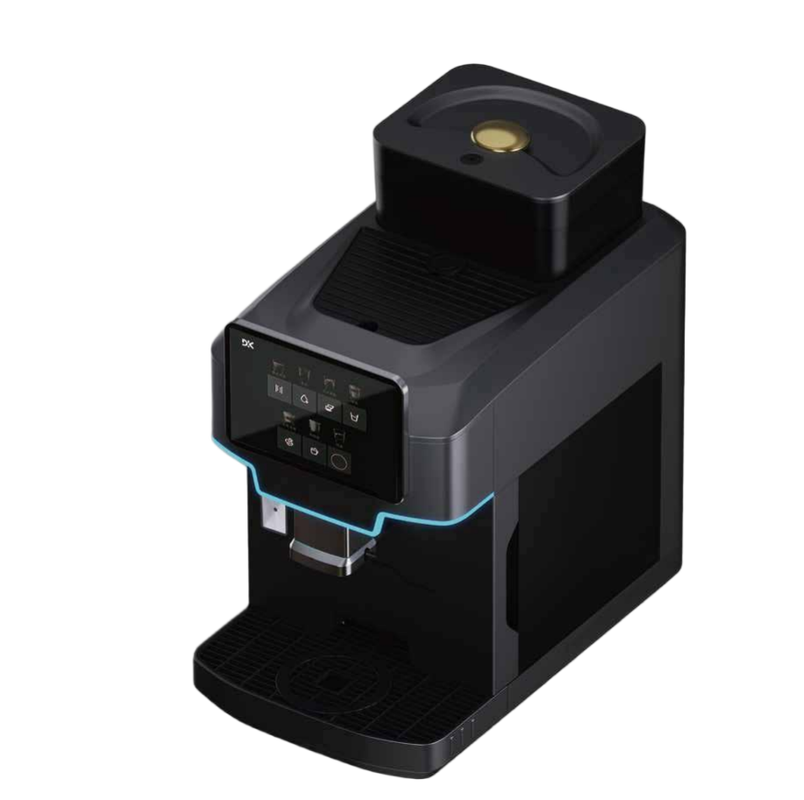

G23 Automatic Coffee Machine | 10.1" Touch Screen, 23g Brewing Chamber, WiFi
|
G23 Automatic Coffee Machine | 10.1" Touch Screen, 23g Brewing Chamber, WiFi
| Brand Name: | HAMBACH |
| Model Number: | G23 |
Description
The G23 Automatic Coffee Machine is a compact, high-performance coffee solution designed for offices, hospitality areas and commercial reception spaces. It combines a 23g brewing chamber, 10.1-inch touch screen and 800g bean bin with a 0.9L preheating boiler for stable daily operation.
Key components include a Mean Well switching power supply, adjustable-pressure water storage, titanium deck and stepper-motor blade adjustment. The machine supports USB and WiFi connectivity, making it easy to integrate into modern coffee service environments. With 3000W total power and an adjustable beverage outlet height of 110–155 mm, the G23 delivers consistent espresso and Americano with efficient, user-friendly operation.
Specifications
| Tech Data | Model G23 |
|---|---|
| Product Name | Automatic Coffee Machine |
| Brand Name | HAMBACH |
| Model | G23 |
| Dimensional Parameters | D552 × W330 × H637 mm |
| Machine Net Weight | 25kg |
| Brewing Chamber | 23g |
| Deck | 54mm |
| User Interface | 10.1 inch touch screen |
| Bean Bin | 800g |
| Powder Slag Box | 300g |
| Beverage Outlet Height | 110–155 mm adjustable |
| Interface | USB, WiFi |
| Preheating Boiler | 0.9L |
| Rated Voltage | 220V |
| Total Power | 3000W |
Core Accessories
-
Switching Power Supply: Mean Well
-
Water Storage: Adjustable pressure
-
Deck: Titanium
-
Blade Adjusting Motor: Stepper motor
Craftsmanship Details
-
Grinding: Electronic control helps ensure stable coffee quality around the clock, keeping each cup aromatic and consistent.
-
Temperature Control: Dual boiler system helps ensure stable coffee boiler temperature, improving efficiency and flavor uniformity.
-
Filling Pressure: 23g brewing chamber controlled by electronic filling pressure device, supporting consistent single-cycle beverages.
-
Brewing: Analog semi-automatic extraction brewing system maximizes coffee powder extraction efficiency.
-
Milk Frothing: Separate steam system provides long-lasting steam for milk heating and whipping during coffee preparation.
-
Flow Meter: Precisely controls water output per cup, reduces pressure fluctuations in boilers and pumps, and extends the service life of core components.
Applications
Office pantries, hospitality lounges, hotel reception, restaurants, cafes, convenience stores, corporate meeting rooms and client entertainment areas.
